test variant UR5NPF (pE32_gl_12mi1) 18.08.2026

slide rule . . . simulator slide rule

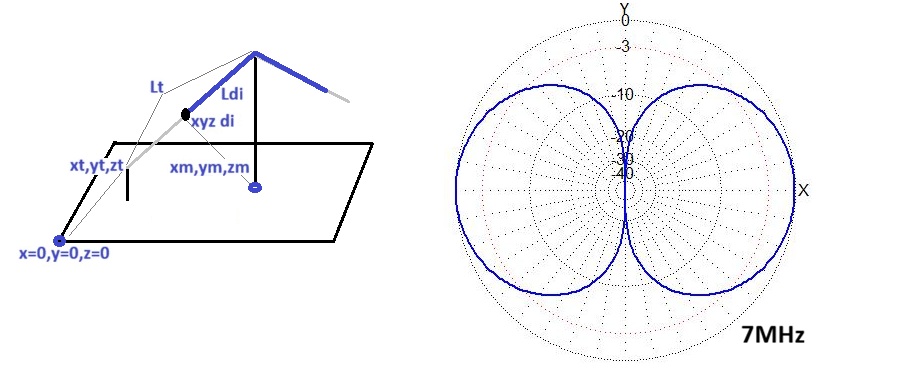

nam		tros							dipol				machta				u gor	u N
		xt	yt	zt	=1=	Lt	Ldi*	=2=	xdi	ydi	zdi	=3=	xm	ym	zm
.
machta		5.32	18.57	8.86	=1=			=2=	5.32	18.57	8.86	=3=	0	0	8.86
.
N_7MHz	=0=>	5.32	29.76	0.8	=1=>	13.79	10.41	=2=>	5.32	27.02	2.78	=3=>	0.00	8.45	2.78	=4=>	35.8°	0.0°
S_7MHz	=0=>	5.32	0	0.7	=1=>	20.28	10.41	=2=>	5.32	9.04	4.67	=3=>	0.00	-9.53	4.67	=4=>	23.7°	0.0°
.
n_3.5MHz	=0=>	0	36.93	0.7	=1=>	20.78	19.31	=2=>	0.38	35.63	1.28	=3=>	-4.94	17.06	1.28	=4=>	23.1°	14.8°
s_3.5MHz	=0=>	10.4	0	0.4	=1=>	21.03	19.31	=2=>	9.98	1.52	1.09	=3=>	4.66	-17.05	1.09	=4=>	23.7°	-14.0°
.
n_28MHz	=0=>	0	22.24	0.8	=1=>	10.33	2.69	=2=>	3.93	19.53	6.76	=3=>	-1.39	0.96	6.76	=4=>	51.3°	31.0°
s_28MHz	=0=>	11.6	14.22	0.8	=1=>	11.11	2.69	=2=>	6.84	17.52	6.91	=3=>	1.52	-1.05	6.91	=4=>	46.6°	-34.5°
.
s_14MHz	=0=>	0	15.48	0.8	=1=>	10.14	5.33	=2=>	2.52	16.95	4.62	=3=>	-2.80	-1.62	4.62	=4=>	52.7°	31.7°
n_14MHz	=0=>	11.6	22.19	0.8	=1=>	10.84	5.33	=2=>	8.41	20.35	4.90	=3=>	3.09	1.78	4.90	=4=>	48.1°	-35.4°
