2.4 Примеры исследования электроприборов для анализа электромагнитной совместимости.

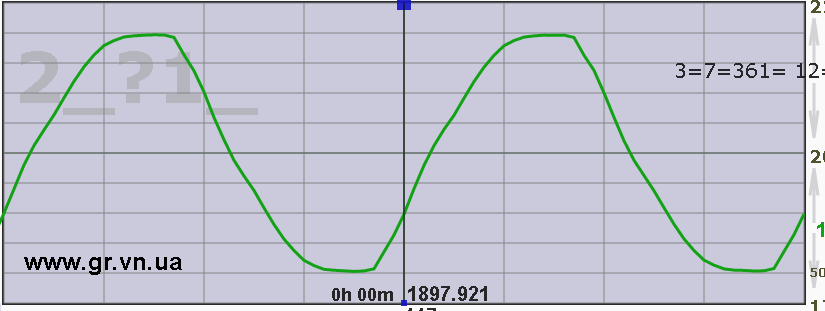

2.4.2 Форма сигнала электрической сети 220В
U>> Ksin=6.9%
_Kg1=100.0% _Kg3=5.8% _Kg5=3.7% _Kg7=0.2% _Kg9=0.7% _Kg11=0.5% _Kg13=0.4% _Kg15=0.4% .
2.4.3 Лампа накаливания
dfaz= -5.6° U= 222.3V. . I= 0.251A . . .S= 55.7 VA . P=55.5 W . . Q=-5.5 VAR . . cosF=0.99
U>> Ksin=6.9%
_Kg1=100.0% _Kg3=5.8% _Kg5=3.7% _Kg7=0.2% _Kg9=0.7% _Kg11=0.5% _Kg13=0.4% _Kg15=0.4% . *
I >> Ksin=3.9%
_Kg1=100.0% _Kg3=3.3% _Kg5=1.9% _Kg7=0.3% _Kg9=0.8% _Kg11=0.3% _Kg13=0.3% _Kg15=0.4% .

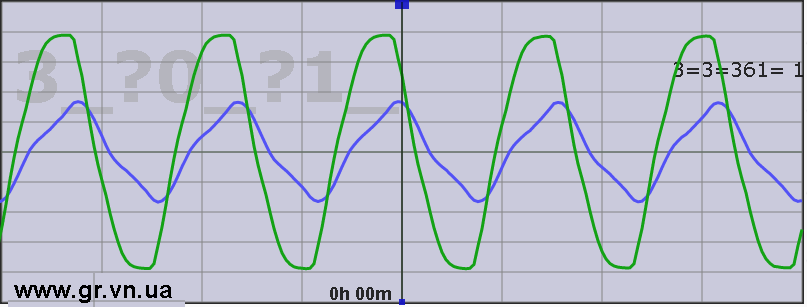

2.4.4 Вентилятор
dfaz= 36.4°. . U= 219.7V. . I= 0.298A . . .S= 65.4 VA . P=52.7 W . . Q=38.9 VAR . . cosF=0.80
U>> Ksin=6.9%
_Kg1=100.0% _Kg3=5.8% _Kg5=3.7% _Kg7=0.2% _Kg9=0.7% _Kg11=0.5% _Kg13=0.4% _Kg15=0.4% *
I >> Ksin=15.4%
_Kg1=100.0% _Kg3=15.3% _Kg5=0.3% _Kg7=0.9% _Kg9=0.2% _Kg11=0.3% _Kg13=0.1% _Kg15=0.2%

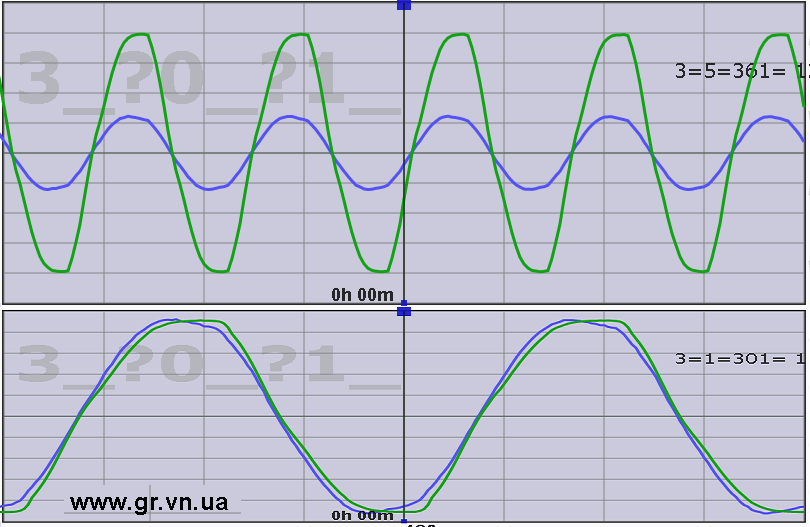

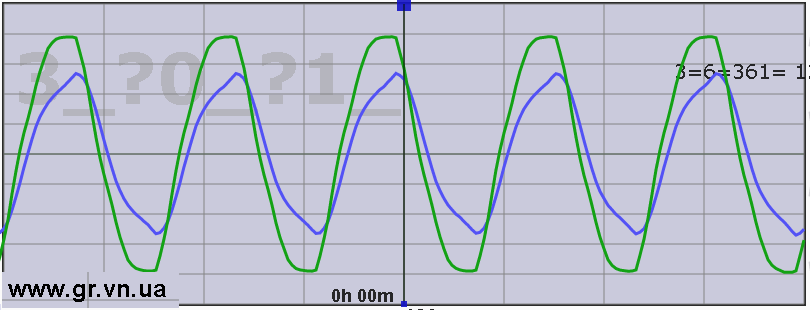

2.4.5 вентилятор + лампа накаливания
dfaz= 19.2°. . U= 221.7V. . I= 0.522A . . .S= 115.8 VA . P=109.4 W . . Q=38.0 VAR . . cosF=0.94
U>> Ksin=6.9%
_Kg1=100.0% _Kg3=5.8% _Kg5=3.7% _Kg7=0.2% _Kg9=0.7% _Kg11=0.5% _Kg13=0.4% _Kg15=0.4% *
I >> Ksin=11.0%
_Kg1=100.0% _Kg3=10.9% _Kg5=1.1% _Kg7=0.5% _Kg9=0.4% _Kg11=0.2% _Kg13=0.3% _Kg15=0.2% .

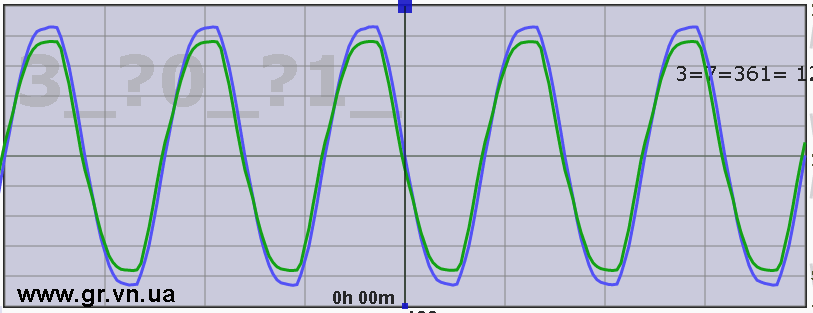

2.4.6 вентилятор + нагреватель
dfaz= 4.2°. . U= 216.0V. . I= 5,41A . . .S= 1168,2 VA . P=1165,2 W . . Q=84,6 VAR . . cosF=0.99
U>> Ksin=6.9%
_Kg1=100.0% _Kg3=5.8% _Kg5=3.7% _Kg7=0.2% _Kg9=0.7% _Kg11=0.5% _Kg13=0.4% _Kg15=0.4% *
I >> Ksin=5.0%
_Kg1=100.0% _Kg3=4.7% _Kg5=1.6% _Kg7=0.3% _Kg9=0.7% _Kg11=0.2% _Kg13=0.4% _Kg15=0.3%

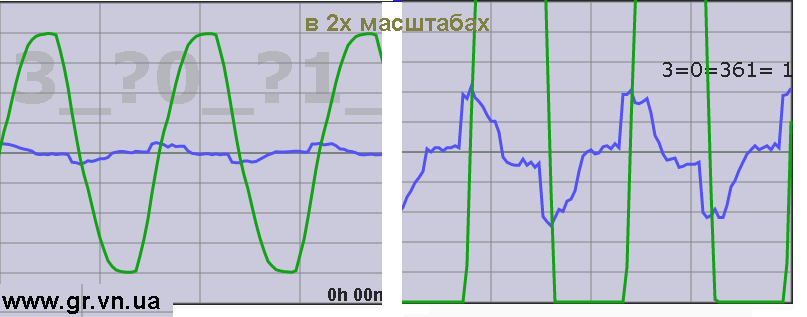

2.4.7 Электробритва
dfaz= -84.3°. . U= 223.8V. . I= 0.052A . . .S= 11.6 VA . P=1.2 W . . Q=-11.5 VAR . . cosF=0.10
U>> Ksin=6.9%
_Kg1=100.0% _Kg3=5.8% _Kg5=3.7% _Kg7=0.2% _Kg9=0.7% _Kg11=0.5% _Kg13=0.4% _Kg15=0.4% *
I >> Ksin=43.2%
_Kg1=100.0% _Kg3=37.0% _Kg5=13.8% _Kg7=13.4% _Kg9=9.9% _Kg11=5.1% _Kg13=4.4% _Kg15=6.4% .

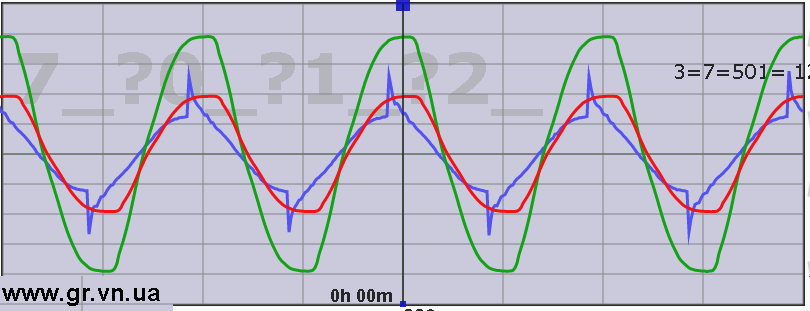

2.4.8 Лампа + ИБП
dfaz= -10.5°. . U= 223.2V. . I= 0.302A . . .S= 67.4 VA . P=66.3W . . Q=-12.3VAR
cosF=0.983
Z=739.2 . . . R=726.9 . . . X=-134.4
U>> Kam= 1.352. . ._Ksin=6.6%
_Kg1=100.0% _Kg3=5.8% _Kg5=3.2% _Kg7=0.3% _Kg9=0.7% _Kg11=0.5% _Kg13=0.3% _Kg15=0.3%
I >> Kam= 2.546. . . _Ksin=17.5%
_Kg1=100.0% _Kg3=10.8% _Kg5=8.9% _Kg7=7.2% _Kg9=5.6% _Kg11=5.3% _Kg13=4.5% _Kg15=4.3%
